Tech Specs
Key Specs
Motherboard Support:E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
Enclosure Type:Mid-Tower
Case Material:SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)
Dimensions
Height (with feet):465 mm / 18.31 in
Width:225 mm / 8.86 in
Depth:430 mm / 16.93 in
Weight:7.63 kg / 16.82 lb
Compatibility & Clearance
CPU Cooler Height:Up to 170 mm
GPU Length:Up to 410 mm
PSU Length:Up to 200 mm
Cable Management:Up to 28.7 mm
Top Radiator:Up to 240 mm (280 mm with low-profile memory)
Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:Up to 55 mm
Front Ports
USB 3.2 Type-A:1
USB 3.2 Gen 2x2 Type-C (20 Gbps):1
Headset Audio Jack:1
Expansion Slots
Standard:7
Vertical:0
Drive Bays
2.5":2
3.5":1
Fan Support
Front:3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included)
Top:2 x 120 mm / 2 x 140 mm
Bottom:2 x 120 mm
Rear:1 x 120 mm (1 x F120Q Case Version included)
Radiator Support
Front:Up to 360 mm
Top:Up to 240 mm (280mm with low-profile memory only)
Fan Specs
Model:F360 RGB Core (Case Version)
Speed:1,700 ± 200 RPM
Airflow:50.1 CFM
Static:1.27 mm-H₂O
Noise:23.3 dBA
Fan Connector:3-pin
Fan Specs
Model:F120Q (Case Version)
Speed:1,350 ± 150 RPM
Airflow:60.2 CFM
Static:1.05 mm-H₂O
Noise:24.1 dBA
Fan Connector:3-pin
- Additional Information
- Shipping & Delivery

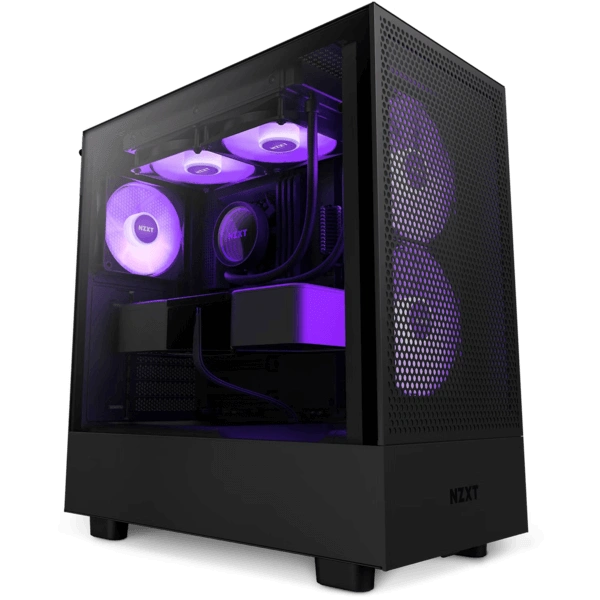

The H5 Flow RGB features two pre-installed F140 RGB Core fans & two F120Q Quiet Airflow fans so this compact mid-tower stays cooler than cool. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.
Dedicated fan on bottom inside panel is angled to cool GPU
Perforated front panel provides optimal ventilation
Intuitive cable management system with wide channels, hooks, & straps
Tool less access to front and side panels
Front panel supports up to 2 x 140mm fans or 280mm radiator
Top panel supports up to 2 x 120mm fans or 240mm radiator
Includes two pre-installed F140 RGB Core fans & two F120Q Quiet Airflow fans

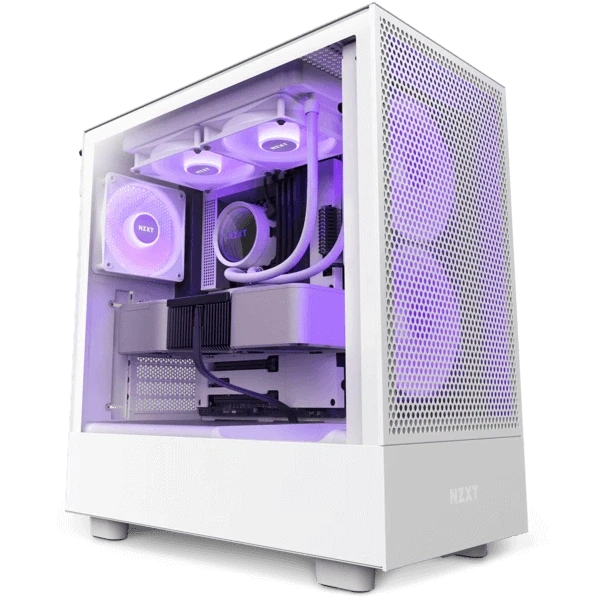

Connects multiple F140 RGB Core fans to 5V ARGB header on the motherboardTwo color options (Matte Black, Matte White)
